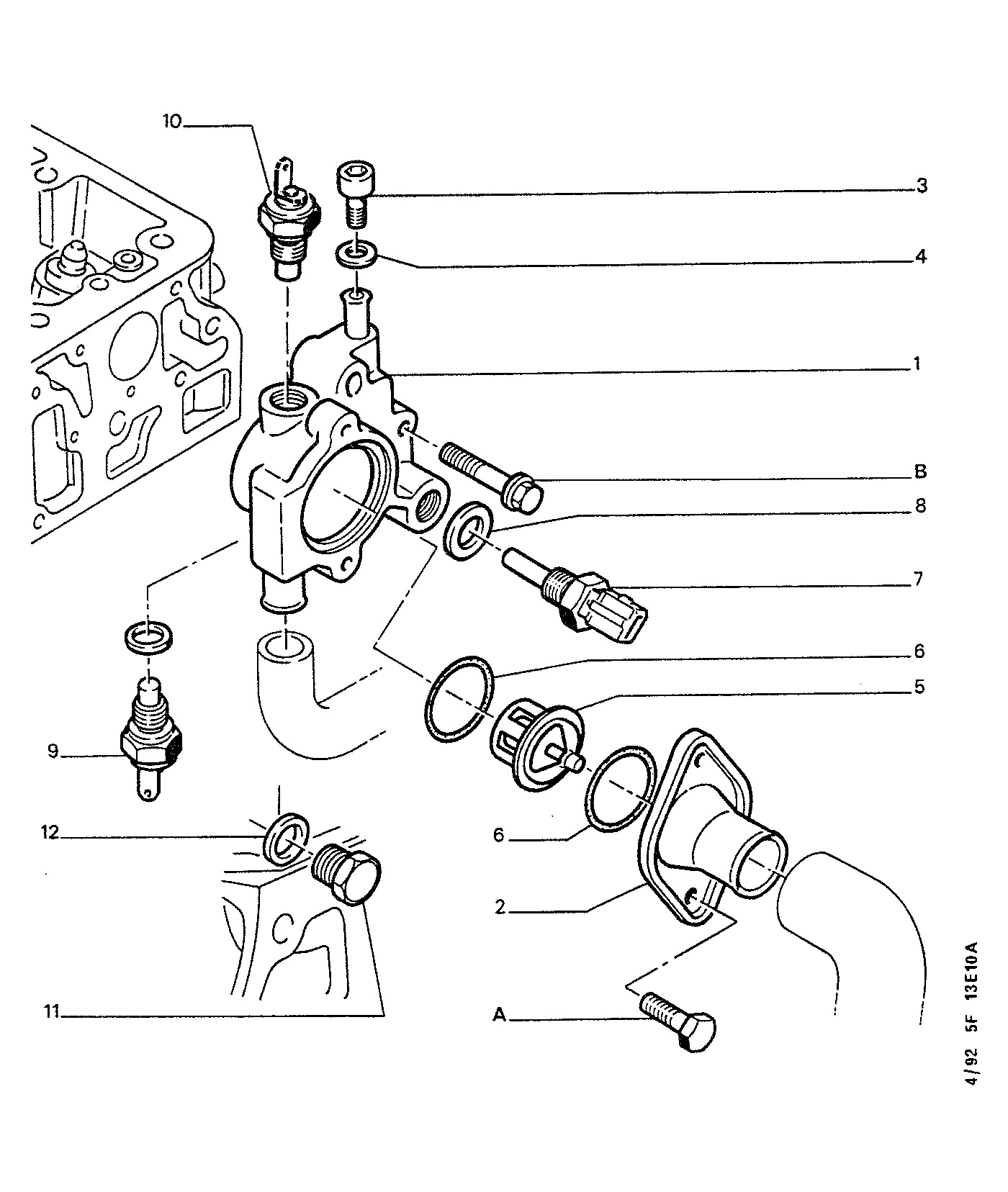

| FR | 309F 1 13E10A | RAC D EAU SUR RADIAT ET COLLECT D'EAU |
| 01 | 1336 80 | 01 |
BOITIER SORTIE
- CARBURATION TU3A + 1336 37 (1) - CARBURATION TU3S - CARBURATION TU3F2 - CARBURATION TU1 + 1336 37 (1) |
 | |||
| 1336 81 | 01 |
- INJECTION TU3M - INJECTION TU1M - INJECTION TU3FM |
|
| | |||
| 02 | 1336 44 | 01 | EMBOUT SORTIE |
| | |||
| 03 | 1306 29 | 01 | VIS PURGE EAU M |
| | |||
| 04 | 8249 18 | 01 | RONDELLE ETC DIAM 6 |
| | |||
| 05 | 1338 44 | 01 |
THERMOSTAT 89 DEG
DAUPHIN THOMSON VERNET V1906 |
| | |||
| 06 | 1340 30 | 01 | JOINT |
| | |||
| 07 | 0242 46 | 01 | SONDE TEMP EAU 12X1,50 |
| | |||
| 08 | 1562 51 | 01 | JOINT |
| | |||
| 09 | 0242 49 | 01 | THERMOCONTACT 110ø-14X1,25 |
| | |||
| 10 | 1338 02 | 01 |
THERMISTANCE
VALEO (ALLUM) 73201302 - CARBURATION TU3A - CARBURATION TU3S DEPOL 1505 |
| | |||
| 1337 72 | 01 |
DIAM 14X1,25
RG ROUGE - CARBURATION TU3S SAUF DEPOL 1505 |
|
| | |||
| 11 | 1336 32 | 01 | BOUCHON 14X125 |
| | |||
| 12 | 0164 19 | 01 | JOINT 14X19 |
| | |||
| 9A | 6922 54 | 01 |
VIS TH RDL 6 X 100 - 20 |
| | |||
| 9B | 6922 60 | 01 | 6X100-45 |
